AP Plus High Wall Heat Pumps
The AP Plus Series High Wall Heat Pumps set a new standard in super energy efficient heating with the added benefit of Built-in Wi-Fi Control. Next generation EcoCore Technology is designed to use less power than ever before. And starting at just 18dBA*, it’s NZ’s quietest – ideal for living rooms and bedrooms!
Enquire Now
×- Product Description
- Features
- Specifications
- Downloads
- Installations

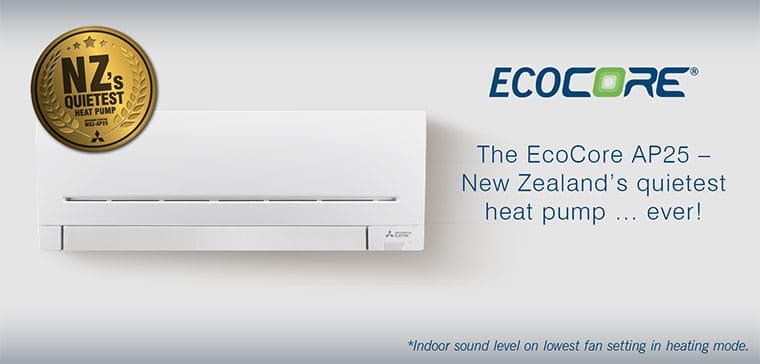

The EcoCore AP25 High Wall Heat Pump sets a new standard in super energy efficient heating and cooling. Starting at just 18dBA, it's New Zealand's quietest heat pump ever - ideal for living rooms and bedrooms! With Dual Barrier Coating that prevents dust and dirt build-up on the inner surface, the EcoCore AP25 stays clean year-round; maximising efficiency and home comfort.

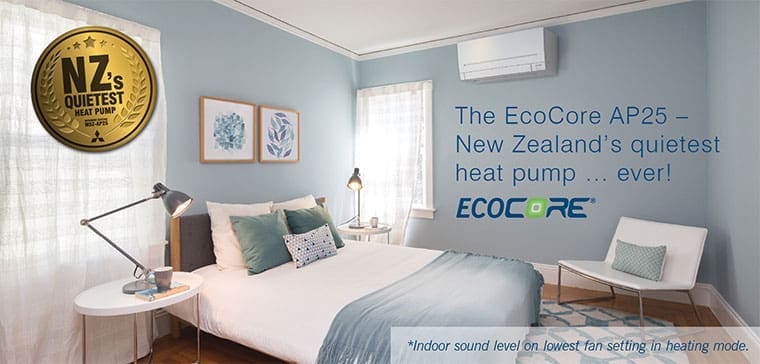

New Zealand’s Quietest Heat Pump!
Starting at an incredibly quiet 18 dBA on its lowest fan speed in heating mode, the AP25 indoor unit is New Zealand’s quietest high wall heat pump ever. The AP 25 It is ideal where quietness matters most, in bedrooms even on the coldest of winter nights. Furthermore, the addition of Night Mode means the outdoor operating noise level drops by a further 3dBA – for the perfect night’s sleep.

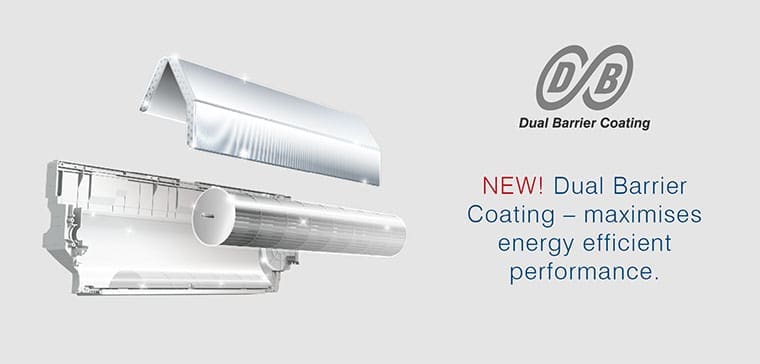

Dual Barrier Coating
The patented and world’s first Dual Barrier Coating from Mitsubishi Electric prevents dust and dirt from accumulating on the inner surface of the indoor unit; keeping your heat pump clean year-round. Keeping key internal components like the heat exchanger, fan and internal duct clean is important for both home comfort and efficiency. Not only does dust and dirt build-up typically create unpleasant odours, it also forces a heat pump to work harder, which can result in significantly impaired energy efficiency.
Next Generation R32 EcoCore Technology
R32 is a refrigerant with just one-third the global warming potential of R410A and has zero ozone depletion potential. R32 offers increased energy efficiency, and is said to be the next generation of refrigerants
Washable Air Purifying Filter
The EcoCore AP Series is equipped with an Air Purifying Filter. This washable filter traps particles such as dust, pollen and other airborne contaminants, generating stable antibacterial and deodorising effects. The size of the three-dimensional surface has been increased from previous models, enlarging the filter capture area. These features give the Air Purifying Filter better dust collection performance than conventional filters.
Horizontal Airflow
The EcoCore AP Series eliminates uncomfortable draughts with horizontal airflow in cooling mode, by first spreading airflow evenly across the ceiling.
Blue Fin Condenser
The heat exchanger of the outdoor has been treated with Blue Fin anti-corrosion treatment slowing the corrosion process caused by salt and sulphur in the air especially in coastal and high sulphur areas.
Night Mode
For the perfect night’s sleep; dimming the operation indicator light, disabling any beeping from the unit, and lowering the outdoor operating noise level by 3dBA.

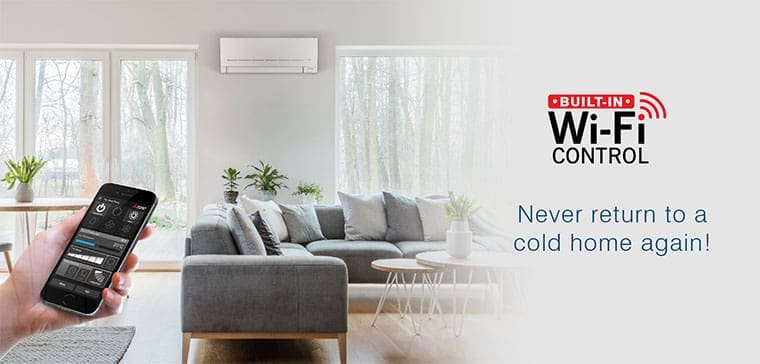

Built-In Wi-Fi Control
For the ultimate in aesthetics and heat pump control no matter where you are, this unit comes equipped with a Wi-Fi Interface inside a hidden pocket in the indoor unit.
Optional Plasma Quad Connect for Healthier Air
Designed to integrate with your existing AP Series Heat Pump, this high-performance two-stage advanced air filtration module, cleans and minimises dust and other allergens for better indoor air quality, all year round.
MSZ-AP25VGKD2 // EcoCore AP 25 High Wall Heat Pump System
- Function:
- Cooling/Heating
- Type:
- Single Split, Inverter
Rated
- Capacity - Cooling:
- 2.5 kW
- Capacity - Heating:
- 3.2 kW
- Capacity - Cooling (min. - max.):
- 1.1 - 3.6 kW
- Capacity - Heating (min. - max.):
- 1.3 - 5.0 kW
- Power Input - Cooling:
- 0.50 kW
- Power Input - Heating:
- 0.67 kW
- Current - Cooling [In+Outdoor] (Rated):
- 2.60 A
- Current - Heating [In+Outdoor] (Rated):
- 3.30 A
Energy Rating Residential
- ZERL - Cooling (Cold/Mixed/Hot):
- 6.0 / 5.5 / 6.0
- ZERL - Heating (Cold/Mixed/Hot):
- 3.0 / 3.0 / 3.5
- TCSPF (Cold/Mixed/Hot):
- 7.61 / 7.31 / 7.85
- HSPF (Cold/Mixed/Hot):
- 4.59 / 4.99 / 5.48
- EER / COP:
- 5.00 / 4.78
- AEER / ACOP:
- 4.97 / 4.75
Energy Rating Commercial
- TCSPF (Cold/Mixed/Hot):
- 17.39 / 11.85 / 9.59
- HSPF (Cold/Mixed/Hot):
- 4.84 / 5.18 / 5.47
Performance
- Operation Range - Cooling:
- -10 / +46 degC
- Operation Range - Heating:
- -15 / +24 degC
MSZ-AP25VGKD2-A1 - Wall Mounted EcoCore AP25 Indoor Unit - White
- Function:
- Cooling/Heating
- Type:
- Single Split, Inverter
Nominal Capacity
- Capacity - Cooling:
- 2.5 kW
- Capacity - Heating:
- 3.2 kW
- Sound Level - Cooling (Low - Super High, dB(A)):
- 19 / 24 / 31 / 38 / 44
- Sound Level - Heating (Low - Super High, dB(A)):
- 18 / 25 / 31 / 38 / 42
- Air Volume - Cooling (Super High, Litre/sec):
- 82-205
- Air Volume - Heating (Super High, Litre/sec):
- 82-190
- Refrigerant:
- R32
- Liquid Pipe Size (OD, mm):
- 6.35
- Gas Pipe Size (OD, mm):
- 9.52
- Max. Pipe Length (m):
- 20
- Max. Pipe Height (m):
- 12
- Power Supply:
- 230V / Single Phase / 50 Hz
- Dimensions (WxDxH, mm):
- 798 x 219 x 299
- Weight:
- 10.5 kg
MUZ-AP25VG2-A1 - R32 Inverter Outdoor Unit
- Function:
- Cooling/Heating
- Type:
- Single Split, Standard Inverter
- Operation Range - Cooling:
- -10 / +46 degC
- Operation Range - Heating:
- -15 / +24 degC
- Sound Level - Cooling (dB(A)):
- 46
- Sound Level - Heating (dB(A)):
- 49
- Air Volume - Cooling (Litre/sec):
- 82-205
- Air Volume - Heating (Litre/sec):
- 82-190
- Power Supply:
- Single phase, 230 V, 50Hz
- Refrigerant:
- R32
- Liquid Pipe Size (OD, mm):
- 6.35
- Gas Pipe Size (OD, mm):
- 9.52
- Max. Pipe Length (m):
- 20
- Max. Pipe Height (m):
- 12
- Dimensions (WxDxH, mm):
- 800 x 285 x 550
- Weight:
- 34 kg
