Black Diamond High Wall Heat Pumps

With 3 distinctive colour choices, the range redefines personalised comfort and style and is packed with advanced features including Dual Barrier Coating maximising energy efficiency, a 3D i-See Sensor for customised comfort and Plasma Quad Filtration. Furthermore, HyperCore Technology is standard on the 2.5-5kW capacities guaranteeing full heating to -15°C

Available in 3 colours: White, Black and Red.

Enquire Now

×

This field is hidden when viewing the form
This field is hidden when viewing the form

Black Diamond High Wall Heat Pumps
Black Diamond High Wall Heat Pumps
Black Diamond High Wall Heat Pumps
Black Diamond High Wall Heat Pumps
Black Diamond High Wall Heat Pumps
Black Diamond High Wall Heat Pumps
Black Diamond High Wall Heat Pumps
  • Product Description
  • Features
  • Specifications
  • Downloads
  • Installations

The LN25 HyperCore High Wall sets a new standard in unparalleled design and customised home comfort; with advanced features such as 3D i-See Sensor Technology, patented Dual Barrier Coating, Plasma Quad Plus Filtration and Dual Split Vane Technology. With HyperCore Technology, it delivers New Zealand's best heat pump performance in cold conditions; providing its full rated heating capacity right down to -15°C and guaranteed heating operation down to -25°C. Boasting improved energy efficiency with R32 refrigerant and a sleek, premium finish, the LN HyperCore Series truly redefines the heat pump.

Available in 3 colours: White, Black and Red.

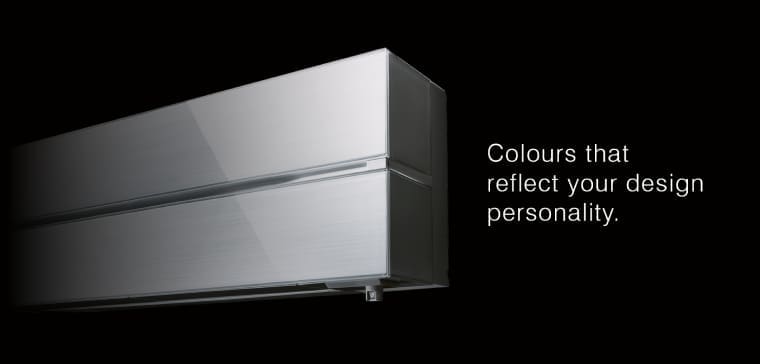

Reflect your Design Personality

The Black Diamond Series features a unique gloss finish with a sleek brushed texture; displaying a deep colour that creates an elegant, striking impact. Choose from Red Diamond, White Diamond or Black Diamond, and make your personal design vision a reality.

Excellence in design

Special painting technology on the housing surface lends the Black Diamond Series a particularly deep colour and an elegant, striking finish.

Choose from Red Diamond, White Diamond or Black Diamond, and make your personal design vision a reality.

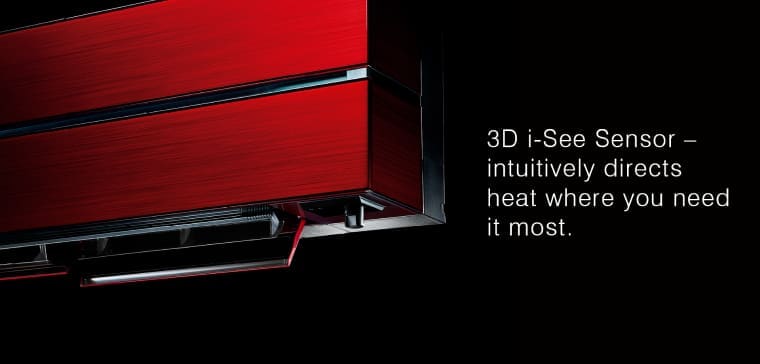

3D i-See Sensor

The 3D i-See Sensor offers the ultimate in customised heating and cooling; analysing the temperature profile of the room and providing the perfect amount of heating or cooling based on preference.

How Does it Work?

This intelligent sensor continuously takes a thermal scan of the room and splits it into 752 three-dimensional zones, measuring the temperature in each to detect exactly where people are in a room. It’s even clever enough to detect how hot or cold a person is. With the ability to detect the presence and position of people in the room, the 3D i-See Sensor adjusts the temperature and airflow to ensure everyone is comfortable.

Customised Comfort

The 3D i-See Sensor enables a new level of truly personalised comfort to be achieved with customisable airflow control. Working in conjunction with the dual split vane design, the 3D i-See Sensor is able to direct customised heating or cooling where it is needed most. As a result, it can save energy by ensuring no unnecessary heating or cooling to areas that don’t require it.

The 3D i-See Sensor is able to provide features such as Indirect or Direct Airflow, Even Airflow, Auto-Off and Energy Saving Mode.

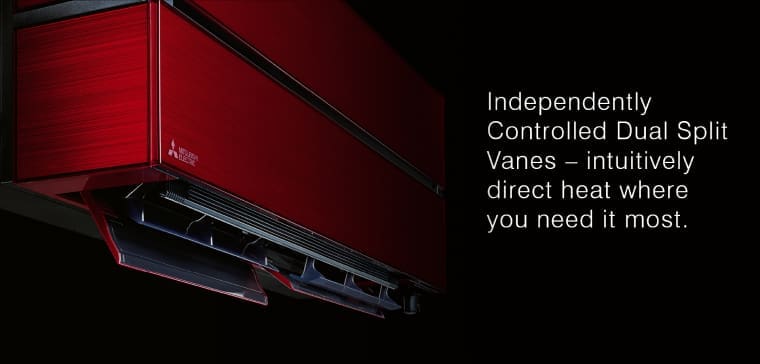

Independently Contolled Dual Split Vane Airflow

Intuitively Adjusts the Airflow Direction to Where It’s Needed

The 3D i-See sensor works in conjunction with the dual split vanes to provide heating or cooling to where it is needed most. As a result, it can save energy by not heating or cooling areas that don’t require it. Whether you prefer direct, indirect of evenly distributed airflow, the 3D i-See Sensor provides the ultimate in customisable airflow.

You’ll Never Feel Cold

The 3D i-See sensor can recognise movement of an individual in a room and subsequently direct the airflow with the dual split vanes; so they continue feeling warm no matter where they have moved to in the room.

Comfort for All With Multiple Airflow Directions

The 3D i-See Sensor can identify multiple people present in the room and adjust the dual split vanes to direct heating or cooling evenly throughout; so everybody feels comfortable in the room.

Plasma Quad Plus Advanced Filtration

The advanced Plasma Quad Plus Filtration System, featuring high-performance two stage plasma technology, filters the air to clean away viruses such as Covid-19* as well as smells, dust, moulds and other common household allergens.
The Two Stage Plasma Quad Plus Filter works like an electrical curtain, using an electrical discharge to catch and neutralise even microscopically small particles in the air. In fact, it can even capture PM2.5 particles (that’s 20 times smaller than the width of a human hair!).

Independent test results confirm that the Plasma Quad Filtration System achieves extremely high reduction results in the removal of allergen, mould, bacteria and airborne contaminants in the room. Providing up to 98.8% effectiveness of removing airborne Covid-19* particles too, it’s the ultimate peace of mind for ensuring a healthier, cleaner living environment.

* PQC Electrode Collection Plate, Test Chamber Lab – Test No. 20KB070569, Microbial Testing Laboratory Kobe Testing Center Japan Textile Products Quality and Technology Center.

MSZ-LN25VG2V // HyperCore LN25 High Wall Heat Pump System

  • Function:
  • Cooling/Heating
  • Type:
  • Single Split, Inverter

Rated

  • Capacity - Cooling:
  • 2.5 kW
  • Capacity - Heating:
  • 3.2 kW
  • Capacity - Cooling (min. - max.):
  • 0.8 - 3.5 kW
  • Capacity - Heating (min. - max.):
  • 0.8 - 6.3 kW
  • Power Input - Cooling:
  • 0.49 kW
  • Power Input - Heating:
  • 0.6 kW
  • Star rating - Cooling:
  • Current 5.5, Seasonal 5.0
  • Star rating - Heating:
  • Current 6.0, Seasonal 3.0
  • EER / COP:
  • 5.10 / 5.33
  • AEER / ACOP:
  • 5.07/ 5.30
  • Sensible - Cooling:
  • kW
  • Dry Mode (Moisture Removal, Litre/hr):
  • 0.10
  • Current - Cooling [In+Outdoor] (Rated):
  • 2.5 A
  • Current - Heating [In+Outdoor] (Rated):
  • 3.0 A
  • @ -0 degC Capacity - Heating:
  • 3.2 kW
  • @ -5 degC Capacity - Heating:
  • 3.2 kW
  • @ -10 degC Capacity - Heating:
  • 3.2 kW
  • Operation Range - Cooling:
  • -10 / +46 degC
  • Operation Range - Heating:
  • -25 / +24 degC

HyperCore Performance

Efficient and Hassle-Free Installations

At HVAC NZ, our installation process is designed to ensure efficiency and consistency, whether the work is performed by our own installers or trusted contractors. We adhere to robust systems and procedures that guarantee every installation meets our high standards of quality and reliability. Our commitment to excellence ensures that the products, systems, and values we uphold are consistently delivered in every project, providing peace of mind and satisfaction to our clients.

  • Standardized Procedures: Adhering to robust systems to ensure every installation meets our high standards.
  • Consistent Quality: Ensuring all installations align with our quality and reliability requirements.
  • Professional Teams: Utilising both our installers and trusted contractors to deliver consistent results.
  • Customer Satisfaction: Committed to providing seamless and hassle-free installations for our clients.
